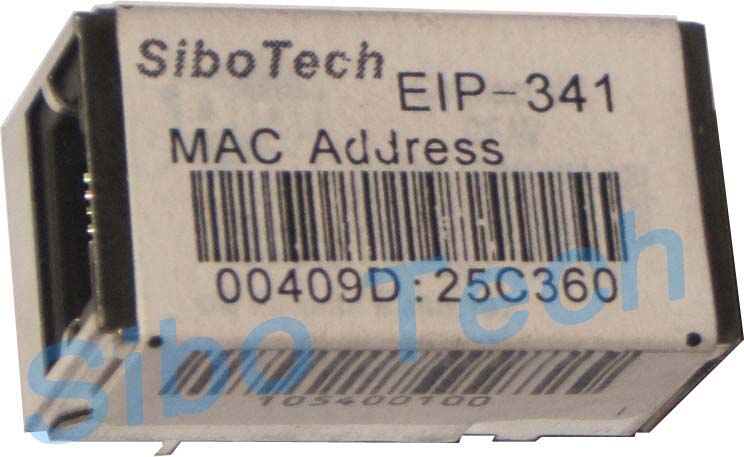

EIP-341 is an embedded Ethernet IP interface module and it can be used to add an Ethernet IP interface through UART for user device quickly.

1. UART interface support simple protocol being defined by Sibotech;
2. Serial port is UART, half duplex, baudrate: 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400bps, 8 data bits, None Parity, one stop bit;
3. EtherNet IP interface is 10/100M adaptive;
4. Provide an EtherNet IP server interface, support multiple connections;
5. Support Web Server;
6. User can choose to initialize module through serial port;
7. Power: 3.3VDC(3.14~3.45), 270mA;
8. Mechanical Dimension: 37(mm)*20(mm)*22(mm);
9. Provide evaluation board;
